Today’s deep neural network architectures achieve impressive performances on a wide array of different tasks. In order to pull off these feats, they are trained ‘end-to-end’ on large amounts of data, which allow them to learn the most useful features for a given task on their own instead of relying on hand-crafted features designed by domain experts. While the possibility for end-to-end training has significantly boosted performance, this approach comes at a cost: as the feature extraction process is highly unconstrained, it is difficult to follow the decision making process throughout the network and thus hard to understand in hindsight how a deep neural network arrived at a particular decision.

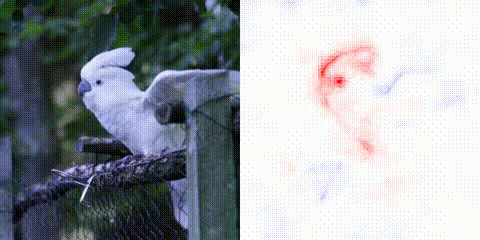

With our work on Convolutional Dynamic Alignment Networks (CoDA Nets), we show that it is possible to train neural networks end-to-end whilst constraining how they are supposed to solve a task. By knowing the how, we can faithfully reflect the decision making process and produce highly detailed explanations for the model predictions. Despite these constraints, we show that CoDA Nets constitute performant classifiers. In particular, we show that it is possible to train CoDA Nets on image classification tasks and ‘push’ them to align their dynamically computed linear transformation weights with discriminative patterns in the input. This allows us to decompose their predictions into linear contributions from individual input dimensions, which can be visualised as shown at the top of the page.

High-level idea

Model outline

The CoDA Nets are built out of multiple CoDA layers, which in turn consist of many Dynamic Alignment Units (see below). Since every one of these layers transforms the input with an input dependent matrix and there exist no non-linearities between any two dynamically computed matrices, the entire CoDA network also performs a linear transformation of the input: the successive linear transformations are equivalent to a single linear transformation. Importantly, the output of the network can now be decomposed according to this linear transformation, as shown in the figure above.

Further, we combine this Dynamic Linearity, i.e., input-dependent linear transformations, with constraints on the dynamic weights in each layer. These constraints induce an ‘alignment pressure’ during optimisation, since the network can only achieve large outputs for well-aligned matrices under these constraints. This ensures that the linear decompositions of the network outputs actually align with features in the input and thus help us understand which regions the model was able to align its weights best with—in a classification task, the model naturally learns to preferentially encode discriminant features.

Dynamic Alignment Units

The CoDA Nets were designed ‘bottom-up’ to be interpretable neural network models and the Dynamic Alignment Units (DAUs) are the fundamental building blocks that we employ to achieve this.

In particular, the DAUs are based on two main principles, which were chosen such that they are inherited by networks built out of DAUs. These principles are Dynamic Linearity and weight constraints that induce alignment when maximising the network outputs.

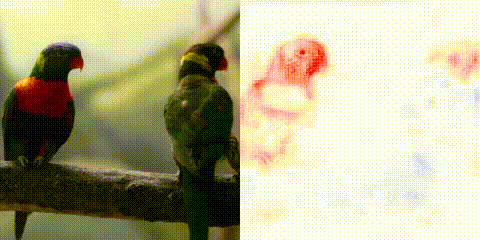

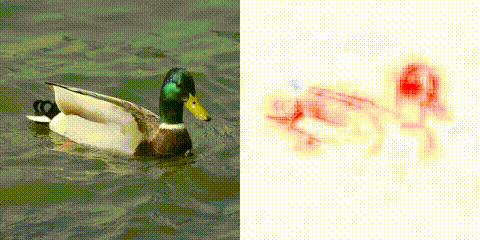

First, by making the DAUs dynamic linear, we explicitly obtain a dynamically computed weight vector that is applied to the layer input. This allows us to use this vector to decompose the DAU outputs in terms of input contributions: the output is just a weighted sum of the entries in the input vector. When using multiple DAUs in parallel in a Dynamic Alignment (DA) layer, the vector of DAU outputs is given as a linear transformation of the input with the rows in this matrix corresponding to the dynamic weights of the individual DAUs. Given the lack of non-linearities between the matrices of successive DAU layers, outputs of DAU Nets can be decomposed via the same principle: the successive matrices are equivalent to a single linear transformation matrix and the output thus a linear transformation of the input to the network. For example, in the following figure we present a selection of linear decompositions of the output logit into contributions from spatial locations for a CoDA Net trained on Imagenet data.

However, while the dynamic linearity explicitly provides a way to decompose network activations, these decompositions need not be meaningful explanations of the network behaviour: if the function computing the dynamic matrices is too complex and unconstrained, the network can achieve any output by any linear combination of the input values.

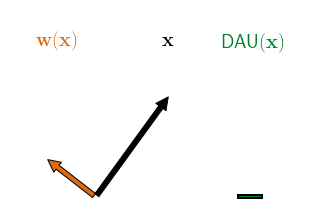

Therefore, as a second architectural constraint, we propose to additionally restrict the norm of the dynamically computed DAU weights, e.g., to unit norm. By doing this, the DAU outputs are bounded independently of the network parameters and can at most be as large as the norm of the input. In order to achieve large outputs (relative to the input norm), the network therefore has to align the dynamic weights with the input, as visualised in the following figure.

Hence, when maximising the output of a single DAU over a set of inputs, the DAUs are optimised to produce weights that are good angular reconstructions of those inputs, since they cannot increase the output by simply scaling up the weights.

Importantly, when optimising a network for classification, the network is trained to maximise the logit of the correct class. This in turn induces a maximisation in the DAUs of the network, which therefore ‘learn’ to align their weights with features that are useful for solving the classification task.

As we discuss in our paper, we can emphasise this property of the CoDA Nets and artificially lower the network outputs by dividing them by a ‘temperature’ parameter T. As a result, in order to achieve the same output magnitude for higher temperatures, the network needs to achieve better alignment throughout the network.

This is indeed what we observe, as exemplified in the above figure.
